Hydraulic Oil Filter Head

Hydraulic Oil Filter Head

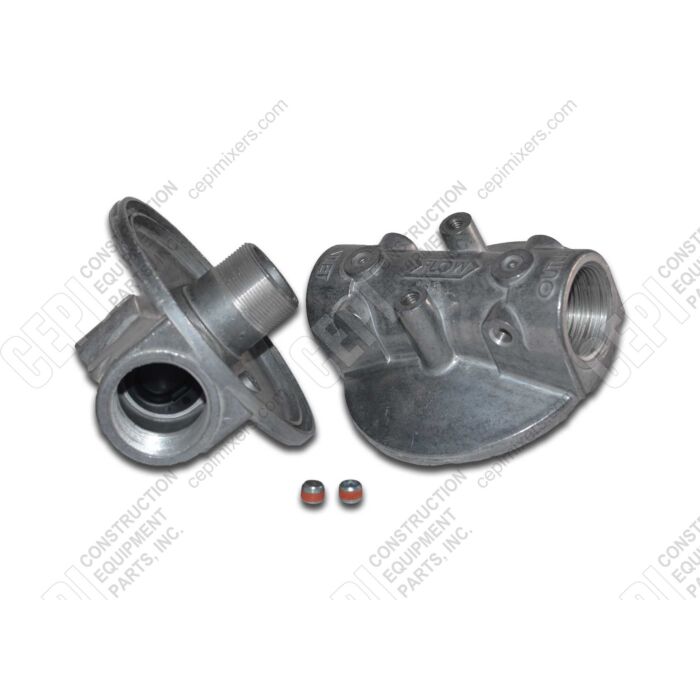

This is a hydraulic oil filter head designed for mounting spin-on type filters in the return line of a concrete mixer's hydraulic system. It serves as the mounting base for the filter element, directing used hydraulic fluid through the filter to remove contaminants before it re-enters the reservoir. Regular replacement of the filter and inspection of the head are necessary to maintain hydraulic system cleanliness, prevent component wear, and avoid costly downtime. This head is compatible with standard filters used on McNeilus and Con-Tech mixers.

Key Features

• Cast aluminum construction for durability and corrosion resistance
• Large 1-1/4" NPT inlet and outlet ports for high flow return line applications
• Standard 1-1/2"-16 UN thread for compatibility with common large-capacity spin-on filters
• Features two mounting holes for secure installation
• May include an integral bypass valve to protect the system during cold starts or if the filter becomes clogged.

Fits These Mixers

McNeilus, Terex, Con-Tech. Fits many general front and rear discharge concrete mixers, particularly as a replacement for McNeilus and Con-Tech models. It is a common return line filter head used across the industry.

All measurements ± standard manufacturing tolerance.
