Type 30 Diaphragm Only

Type 30 Diaphragm Only

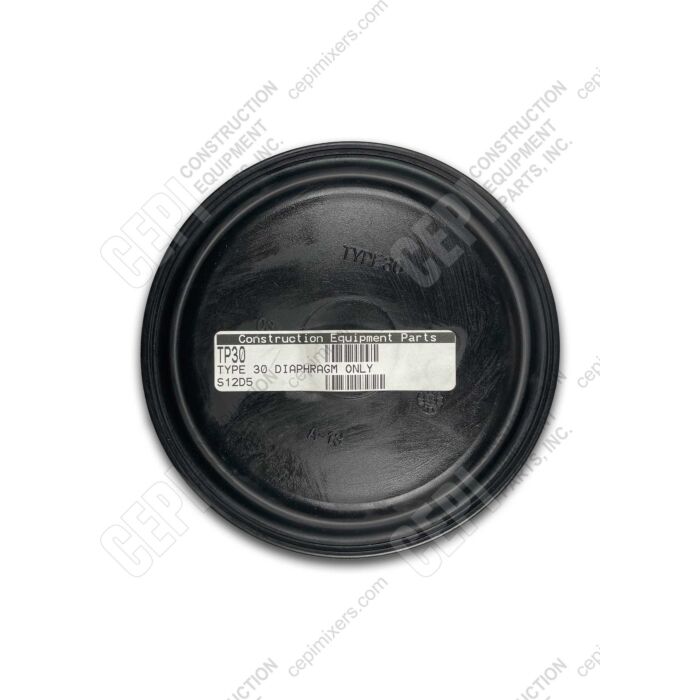

This is a replacement rubber diaphragm for a standard Type 30 air brake chamber, commonly found on heavy-duty commercial vehicles, including concrete mixers. The diaphragm is a critical component that seals the air chamber, allowing air pressure to actuate the brake rod. This part is needed for routine maintenance or when the original diaphragm fails, which can cause air leaks and a loss of braking force. This diaphragm is designed for a standard 2.50-inch stroke and has a diameter of approximately 7.88 inches.

Key Features

• Designed for use in standard Type 30 air brake chambers.
• Made from OEM-quality rubber for durability and a reliable airtight seal.
• Compatible with standard stroke (2.50") brake chambers.
• Direct replacement for multiple OEM and aftermarket part numbers.

Fits These Mixers

McNeilus, Terex, Con-Tech, CBMW, Kimble. Fits standard Type 30 air brake chambers used across various heavy-duty trucks and trailers, including concrete mixers from brands like McNeilus and Terex that utilize this common brake system component.

All measurements ± standard manufacturing tolerance.
