Kimble Drag Link Assembly

Kimble Drag Link Assembly

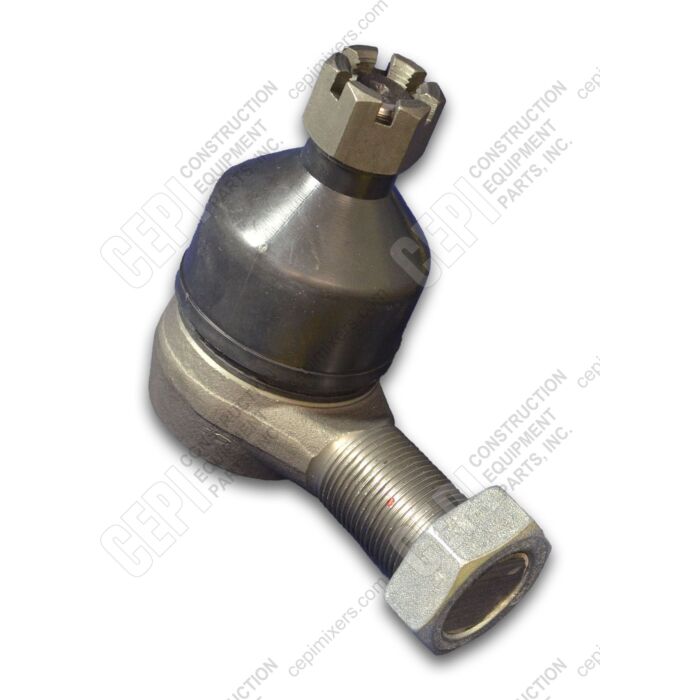

This is a Kimble drag link, also referred to as a tie rod end, with part number S220A047. It serves as a critical connection point within the chute lift assembly on Kimble rear discharge mixers. The drag link transfers force from the chute lift cylinder to the chute, enabling the operator to control the chute's vertical position. This part is essential for replacing a worn or damaged drag link to ensure safe and reliable operation of the concrete chute.

Key Features

• Direct replacement for Kimble OEM part number S220A047
• Functions as a drag link for the chute lift cylinder.
• Also described as a chute lift cylinder tie rod end.

Fits These Mixers

McNeilus, Con-Tech, CBMW, Kimble. Specifically designed for use on Kimble rear discharge concrete mixers as part of the chute lift cylinder assembly.
