Plant Air Cylinder Rod Clevis

Plant Air Cylinder Rod Clevis

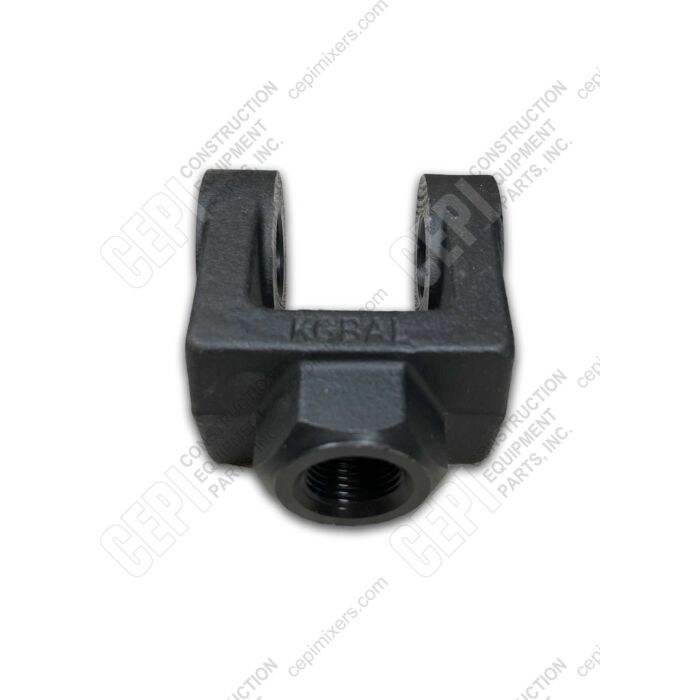

This plant air cylinder rod clevis is a critical connection component for pneumatic systems in concrete batch plants. It is designed to attach to the threaded rod of an air cylinder, creating a secure pivot point. This part is essential for operating aggregate gates, butterfly valves, and material diverters. It is commonly replaced due to wear and tear at the pivot point or damage to the threads, which can lead to failure of the actuated component. This specific clevis is designed for use with air cylinders from major batch plant OEMs like Con-E-Co.

Key Features

• Y-shaped connector for pneumatic cylinder rods.
• Provides a pivot point for actuation via a clevis pin.
• Durable steel construction for high-stress environments.
• Available in standard and heavy-duty (HD) versions.
• Used to operate gates, valves, and diverters on concrete batch plants.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Fits air cylinder assemblies on concrete batch plants from OEMs like Con-E-Co, Vince Hagan, and Johnson-Ross. Specifically listed as a component for Springville®/Con-E-Co air cylinders. Compatibility is determined by the cylinder's rod thread size and the required clevis pin diameter.

All measurements ± standard manufacturing tolerance.
