Safety Relief Valve - 10

Safety Relief Valve - 10

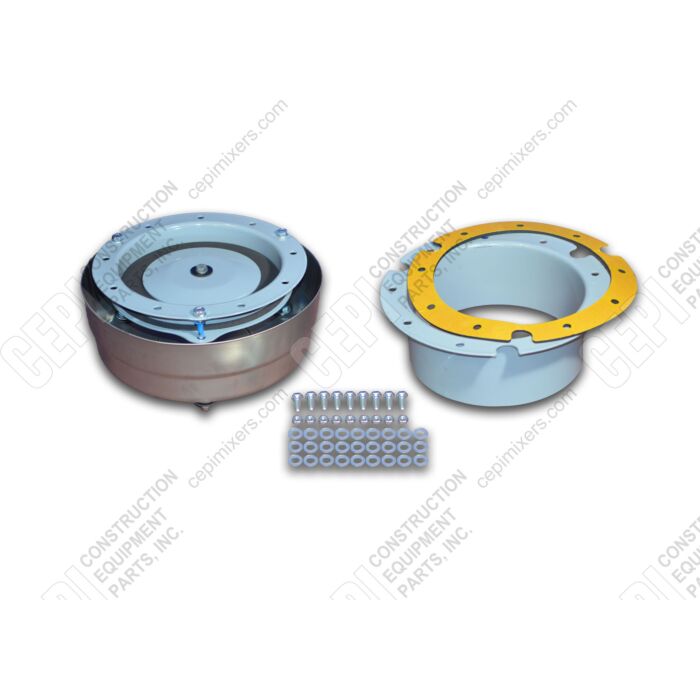

This is a WAM VCP-type pressure relief valve, a critical safety component for concrete batch plant silos. It is installed on the silo roof to automatically vent air when internal pressure exceeds a preset limit during pneumatic filling, preventing structural damage. It also allows air to enter to balance pressure during material discharge, protecting the silo from collapsing under a vacuum. This complete assembly, including a weld-on collar and hardware as shown in the image, is needed to replace a malfunctioning or clogged valve to ensure plant safety and prevent catastrophic silo failure.

Key Features

• Dual-action design provides both overpressure and vacuum relief.
• Carbon steel body with a weather protection cover.
• 10-inch (273mm) casing diameter.
• Helical springs keep valve lids closed until pressure limits are exceeded.
• Lightweight design for easier installation on silo roofs.
• Includes weld-on flange/collar and fasteners for installation.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Fits cement, fly ash, and material storage silos on concrete batch plants from OEMs like Vince Hagan, Con-E-Co, CMW, and Stephens. It is a direct equivalent to the WAM VCP2731B and similar models.

All measurements ± standard manufacturing tolerance.
