Air Valve - Double Solenoid

Air Valve - Double Solenoid

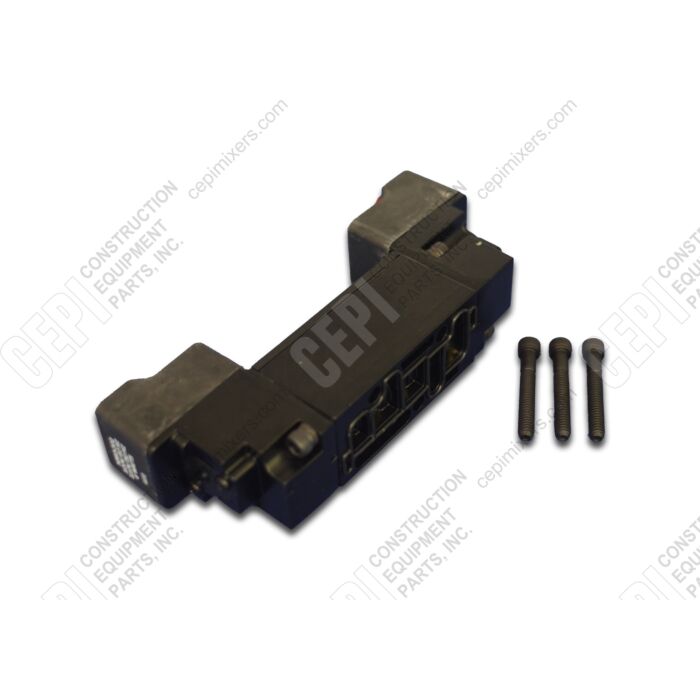

This is a Parker (Schrader Bellows) L7652441153B manifold-mounted pneumatic directional control valve. It is a 3-position, double solenoid valve that is spring-centered to an 'all ports blocked' state, providing precise control for double-acting cylinders in industrial systems. Commonly used in the air systems of concrete batch plants for controlling gates and diverters, this valve is a necessary replacement part for maintenance to ensure reliable and safe equipment operation. It operates on 120VAC and is designed for manifold mounting, which allows for quick replacement without disturbing air or electrical connections.

Key Features

• Double solenoid, 3-position, spring-centered design.
• 4-Way valve with 'All Ports Blocked' center position.
• Operates on 120VAC / 60Hz power.
• Manifold mount for easy installation and service.
• Features a 1/4-inch NPT inlet port.
• Part of the Parker Sprint® Valve series.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. This is a general-purpose industrial air valve. Based on the initial request context, it is used in the pneumatic control systems of concrete batch plants, such as those manufactured by Erie Strayer or Johnson Ross, for actuating components like gates and diverters.

All measurements ± standard manufacturing tolerance.
