Plant Air Valve-Dbl Solenoid

Plant Air Valve-Dbl Solenoid

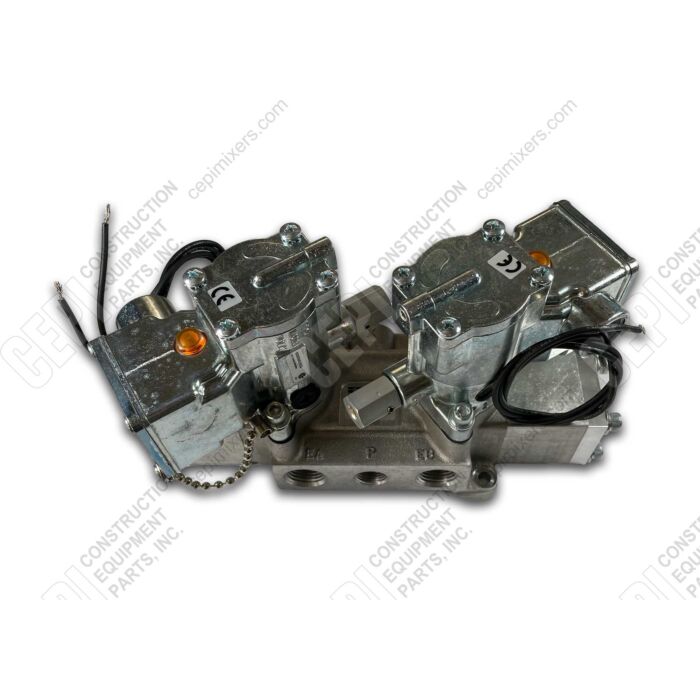

This is a replacement double solenoid air valve assembly for concrete batch plant control systems. It consists of two MAC 82 Series valves mounted on a single manifold. These 4-way, pilot-operated spool valves are used to direct compressed air to open and close gates, butterfly valves, and other pneumatic actuators. The double solenoid design allows for maintained positions without constant power and provides reliable, fast-acting control. This assembly is a critical component for automated batching systems, and replacement is necessary when valves fail to shift, leak air, or have electrical faults, which can halt plant production.

Key Features

• Features two MAC 82 Series double solenoid valves on a manifold base.
• 4-way spool valve design allows for versatile use as a selector or diverter valve.
• Balanced spool design is immune to pressure variations and wipes away contamination to prevent sticking.
• Solenoids are typically 110-120V AC, a common voltage for batch plant controls.
• Plug-in design of valves and solenoids allows for easy maintenance and replacement.
• Used by OEMs like Stephens Manufacturing for activating gates and valves.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Fits various concrete batch plants that use MAC 82 series solenoid valves for air controls, including those manufactured by Stephens Manufacturing. Used to control air-actuated gates, butterfly valves, and other pneumatic components.

All measurements ± standard manufacturing tolerance.
