Butterfly Valve Actuator-WAM

Butterfly Valve Actuator-WAM

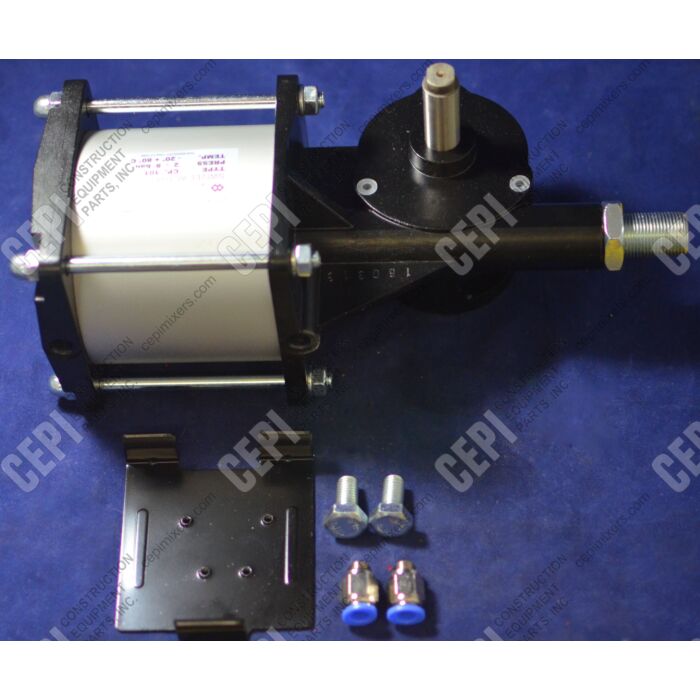

The WAM CP101 is a compact and durable pneumatic actuator used to automate valve operation in concrete batch plants and other bulk material handling systems. It is specifically designed for the 90-degree rotation needed to open and close WAM VFS Butterfly Valves, VSS Ball Segment Valves, and DVA Diverter Flap Valves. This actuator is essential for controlling the flow of powders and granular materials, such as cement and aggregates, from silos, hoppers, and screw conveyors. Its die-cast aluminum body, interchangeability with other WAM actuators, and standardized DIN 5482 splined shaft coupling make it a cost-effective and reliable choice for maintenance and replacement.

Key Features

• Sturdy and compact die-cast aluminum body with NBR rubber seals.
• Provides 90-degree opening and closing for butterfly, ball segment, and diverter flap valves.
• Standard operating pressure of 2 to 8 bar (29 to 116 PSI).
• Interchangeable with other WAM actuators for versatile use.
• Features a splined shaft coupling bush according to DIN 5482 for secure mounting.
• Can be fitted with accessories like limit switches (e.g., MIC23) and solenoid valves.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Fits WAM VFS Butterfly Valves (sizes 4" to 12"), WAM VSS-type Ball Segment Valves, and WAM DVA-type Diverter Flap Valves. Commonly used in concrete batch plants and other industrial processes for controlling material flow from silos, bins, hoppers, and screw conveyors.

All measurements ± standard manufacturing tolerance.
