Bray Valve Sleeve Adapter For 4" Valve

Bray Valve Sleeve Adapter For 4" Valve

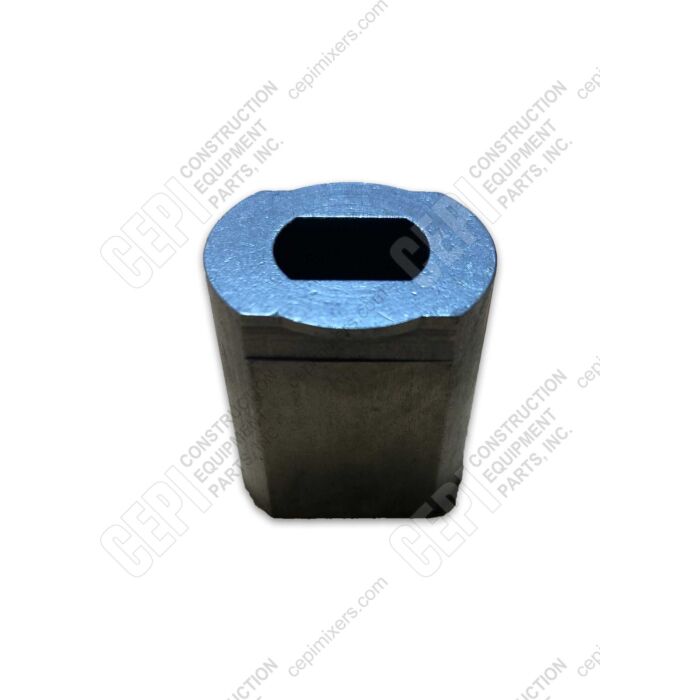

This is a Bray B1 sleeve adapter for a 4-inch butterfly valve, a critical component for automated valve systems in concrete batch plants. The adapter functions as a mechanical coupling, ensuring a secure and precise fit between the valve's stem and the actuator's drive output. This part is essential when installing a new actuator or replacing a worn or damaged adapter to maintain reliable, automated control over the flow of cement, fly ash, or other materials. It specifically adapts a 16mm stem or shaft to a 19mm receiver, or vice-versa.

Key Features

• Couples a 4" Bray butterfly valve to an actuator
• Ensures secure mechanical engagement for reliable valve operation
• Adapts between 16mm and 19mm shaft/stem sizes.
• Designation: B1 Sleeve Adapter.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Fits 4-inch Bray butterfly valves used in concrete batch plant material handling systems, such as those manufactured by Vince Hagan and Stephens Mfg.

All measurements ± standard manufacturing tolerance.
