Plant Air Cylinder-W/Clev&Pin

Plant Air Cylinder-W/Clev&Pin

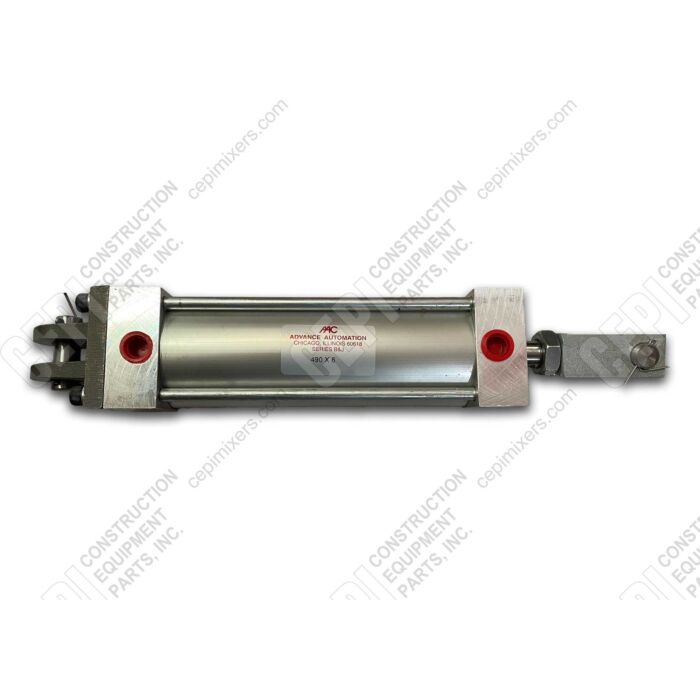

This is an aftermarket replacement air cylinder designed for use in concrete batch plant applications. With a 2.5-inch bore and 6-inch stroke, it provides the necessary force for actuating gates, levers, and other components within the plant's pneumatic system. It comes equipped with a clevis and 0.625-inch pins for direct installation. The cylinder is built for durability in harsh environments, featuring a nitro-carburized piston rod for superior corrosion resistance compared to standard chrome plating. This part is essential for plant maintenance and repair, ensuring reliable operation of automated systems.

Key Features

• 2.5-inch bore diameter
• 6-inch stroke length
• Includes clevis and 0.625-inch pins for mounting.
• Heavy-duty construction for batch plant applications.
• Nitro-carburized piston rod for enhanced corrosion and wear resistance.
• Rated for up to 250 PSI operating pressure.
• Rod u-cup seal designed for zero leakage.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Designed as a direct aftermarket replacement for the Stephens PACY-2.5X6 air cylinder used in various concrete batch plant applications.

All measurements ± standard manufacturing tolerance.
