Plant Dust Pinch Valve-5"

Plant Dust Pinch Valve-5"

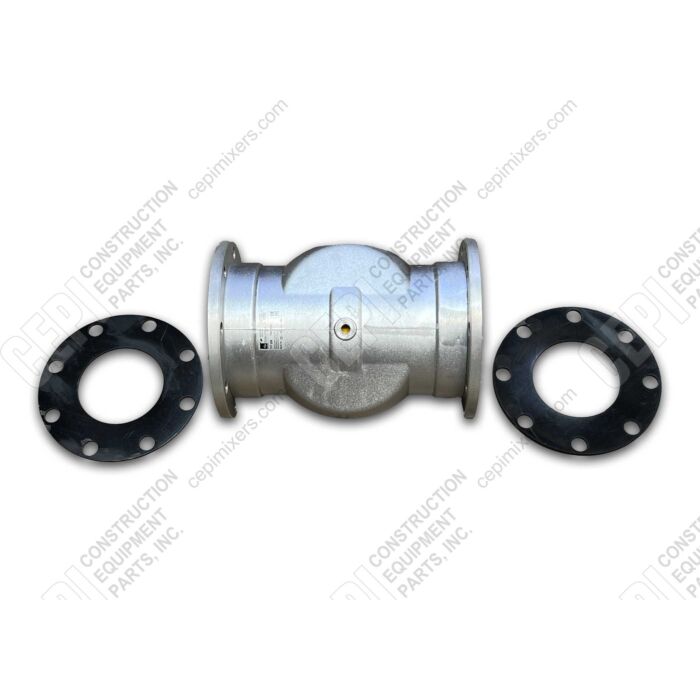

This is a 5-inch pinch valve used to intercept material flow in pneumatic conveying systems or pipelines, specifically within a concrete batch plant's dust collection or silo filling circuit. When air pressure is applied, the internal flexible sleeve is pinched closed, providing a hermetic seal to stop the flow of dust or cement. This part is essential for preventing silo overfilling and controlling dust emissions during plant operation. It is a common replacement part needed to maintain the efficiency and safety of the dust control system.

Key Features

• 5-inch (125mm) passage diameter for material flow.
• Pneumatically actuated to pinch an internal sleeve for a hermetic seal.
• Aluminum alloy body construction.
• Fabric-reinforced sleeve for durability with abrasive materials.
• Full bore-through passage provides no pressure loss when open.
• Can be installed as a locking device for silo fill pipes.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Primarily used in the dust collection and silo filling systems of concrete batch plants. It is a compatible replacement for 5-inch pinch valves on equipment from manufacturers like Vince Hagan, Con-E-Co, and others using WAM-style valves.

All measurements ± standard manufacturing tolerance.
