Metal Work Valve Double Solenoid

Metal Work Valve Double Solenoid

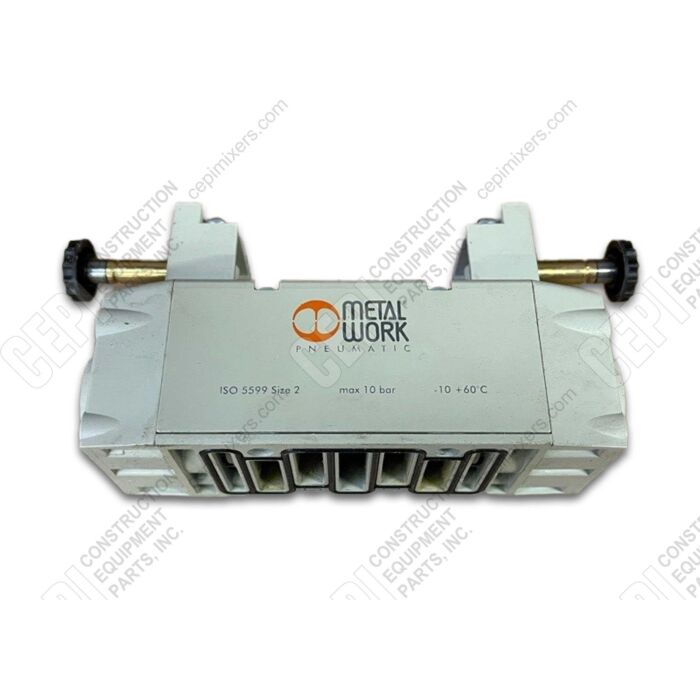

This is a Metal Work electro-pneumatic directional control valve, specifically an ISO 5599/1 Size 2 model. As a 5-port, 2-position double solenoid (bistable) valve, it uses a momentary electrical signal to shift and hold its position, making it ideal for controlling double-acting air cylinders that open and close gates on concrete batch plants. It is a common replacement part for maintaining the pneumatic control systems that operate aggregate, cement, or water functions, ensuring reliable and precise material handling. The valve features manual overrides for testing and is built to an international standard for interchangeability.

Key Features

• Conforms to ISO 5599/1 standard for base-mounted valve interchangeability
• Bistable 5/2 function, meaning it's a double solenoid valve that maintains its last position without power
• High flow rate of 2,700 Nl/min for rapid cylinder actuation.
• Features two manual override knobs for diagnostics and manual operation
• Operates in a pressure range of 1 to 10 bar.
• Wide operating temperature range from -10°C to +60°C.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. This is a universal fit valve for any application requiring an ISO 5599/1 Size 2 base. It is commonly used on concrete batch plant equipment from manufacturers like Con-E-Co, Vince Hagan, and Stephens to control pneumatic cylinders for aggregate gates, cement butterfly valves, and other air-actuated components.

All measurements ± standard manufacturing tolerance.
