Plant SMC Double Solenoid Electric Over Air Valve Assembly

Plant SMC Double Solenoid Electric Over Air Valve Assembly

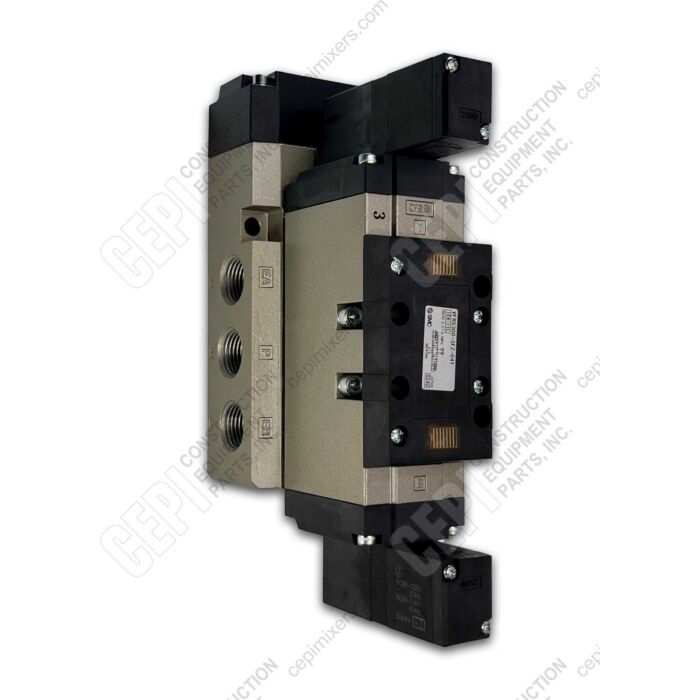

This is an SMC SY5300 series double solenoid electric-over-air valve, a critical component for automated air control systems in concrete batch plants. It is a 5-port, 3-position, closed-center valve that directs compressed air to operate double-acting cylinders. Plant operators would need this part to replace a failed or malfunctioning valve that controls the opening and closing of aggregate or cement butterfly valves, ensuring accurate batching. Notable features include a low power consumption 24VDC coil, high flow rate, and a non-locking manual override for diagnostics.

Key Features

• 5-port, 3-position, closed-center design for use with double-acting cylinders.
• Double solenoid for maintained-position control.
• Operates on a 24VDC electrical signal.
• Features a non-locking push-type manual override for testing and maintenance.
• Built-in strainer in the pilot valve to prevent contamination.
• H-NBR rubber seals for improved ozone resistance.
• High flow rate allows for reduction in valve size compared to previous models.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Fits various concrete batch plant applications requiring a 24VDC double solenoid air valve for controlling aggregate or cement batcher butterfly valves. Commonly found on equipment from manufacturers like Vince Hagan.

All measurements ± standard manufacturing tolerance.
