Butterfly Valve Cylinder Mt Assembly

Butterfly Valve Cylinder Mt Assembly

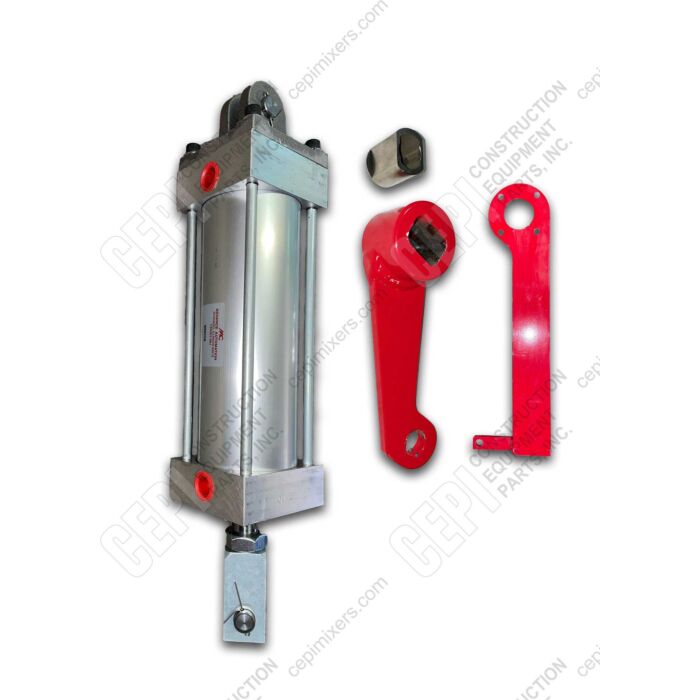

This is a complete butterfly valve cylinder mount assembly used to automate the opening and closing of butterfly valves on concrete batching plants, typically for controlling the flow of cement or other materials. The core of the assembly is a durable, double-acting tie-rod pneumatic cylinder. The kit also includes a heavy-duty steel lever arm and mounting bracket, painted red for high visibility, and a square drive adapter for connecting to the valve stem. This assembly is a critical replacement part for maintaining automated plant operations when an existing actuator fails or its mounting hardware is damaged.

Key Features

• Complete assembly includes pneumatic cylinder, lever arm, and mounting bracket
• Pneumatic cylinder features a 3.5-inch bore and an 8-inch stroke
• Heavy-duty tie-rod cylinder construction for durability in harsh plant environments
• Includes clevis mounts on both the cylinder base and rod end for flexible installation
• Designed for automating butterfly valves on concrete batch plants

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. This actuator assembly is compatible with butterfly valves used on concrete batch plants from manufacturers such as Vince Hagan. The primary air cylinder component is identified as a direct cross-reference to Vince Hagan part number 02-0472.

All measurements ± standard manufacturing tolerance.
