Meter Transmitter Board

Meter Transmitter Board

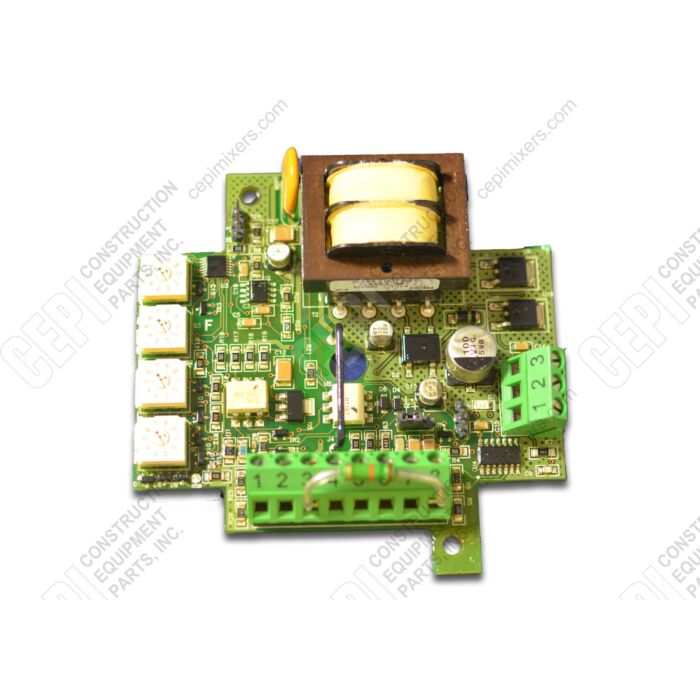

This is a Badger Meter Scaler Board, also known as a scalable board assembly, with part number 250256. It functions as a critical electronic component inside a PFT1E or PFT4E pulse transmitter in a concrete batch plant's water system. The board receives the pulse signal generated by a water flow meter and 'scales' it, modifying the output to match the specific unit of volume required by the plant's batch control system. This board is essential for ensuring accurate water measurement and batching by translating the raw meter output into a usable, calibrated signal for the controller.

Key Features

• AC-DC scalable board assembly
• Designed for use in Badger Meter PFT1E electronic pulse transmitters
• Designed for use in Badger Meter PFT4E electronic pulse transmitters
• Scales raw pulse signals from a flow meter for batch control systems
• Ensures accurate water measurement for concrete production

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. This scaler board is a component for Badger Meter PFT1E and PFT4E electronic pulse transmitters, which are used in the water systems of concrete batch plants from OEMs like Stephens Manufacturing and Con-E-Co.

All measurements ± standard manufacturing tolerance.
