Belt Fastener - 3 Ply

Belt Fastener - 3 Ply

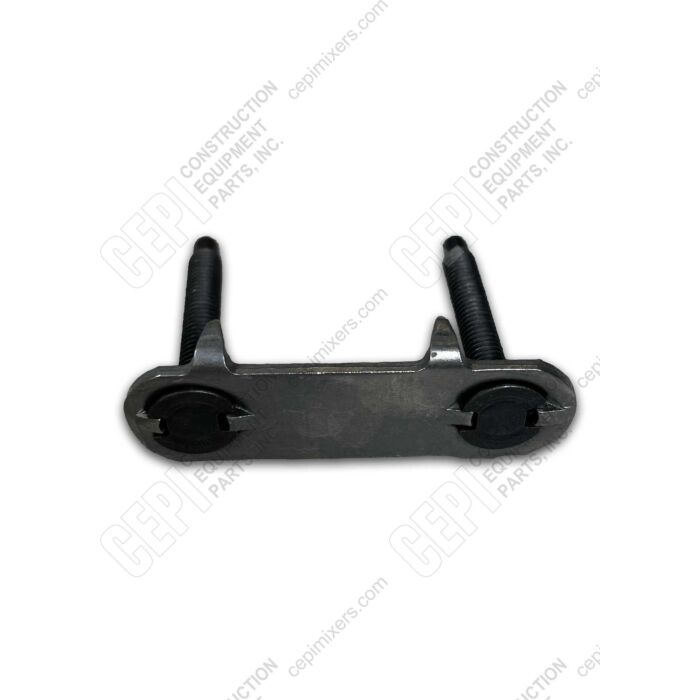

The Flexco 190C is a mechanical, solid plate fastener for conveyor belts used in demanding material handling environments such as sand, gravel, crushed stone, and cement conveyance. This system creates a strong, sift-free splice by using high-tensile strength bolts to compress top and bottom plates, distributing tension evenly across the fastener. A mechanic would use this part to repair a lengthwise tear, bridge a soft spot, or join belt ends for maintenance, ensuring minimal downtime. The fasteners feature specially formed teeth that penetrate the belt carcass without damaging fibers and piloted bolts for quicker installation.

Key Features

• Solid plate design provides a strong, sift-free splice.
• Piloted bolts with tapered tips for faster, easier installation.
• High-tensile strength bolts distribute tension evenly across the fastener plate.
• Specially formed teeth penetrate the belt carcass without causing damage to internal fibers.
• Designed for heavy-duty applications including sand, gravel, crushed stone, and cement.
• Can be installed on-site with portable hand or power tools.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Fits conveyor belts in concrete batch plants and other aggregate industries. Specifically designed for belts 5/16” to 9/16” (8 mm to 14 mm) thick operating on pulleys with a minimum diameter of 18” (460 mm). It is used on equipment from manufacturers like Con-E-Co and Vince Hagan.

All measurements ± standard manufacturing tolerance.
