Level Motor Assembly

Level Motor Assembly

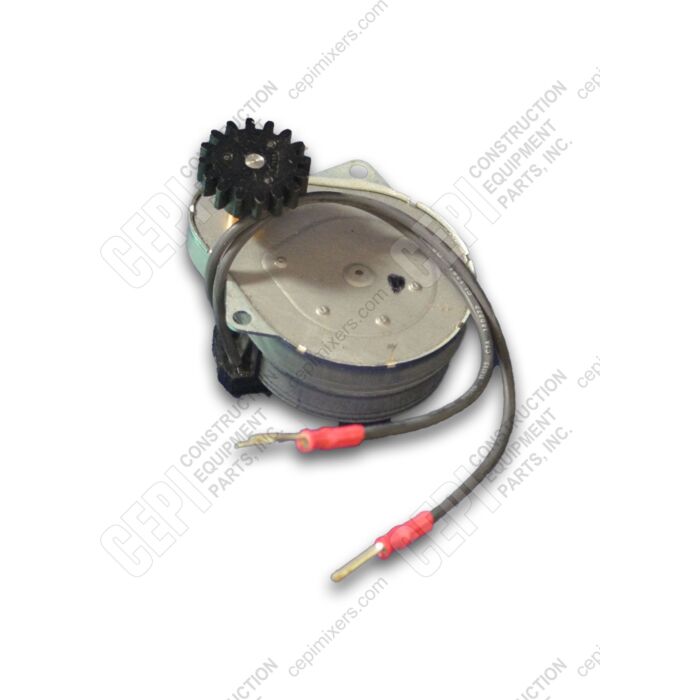

This is a replacement synchronous motor assembly for Roto-Bin-Dicator and Monitor Technologies KA model bin level indicators. These paddle-style sensors are commonly used in concrete batch plant silos to monitor the levels of dry bulk materials like cement and aggregates. The motor provides the low-speed rotation for the paddle; when material impedes the paddle, the motor stalls and actuates a microswitch to signal the material level. Replacing a failed motor is critical for restoring the automated level sensing that prevents bin overflows or material shortages.

Key Features

• Operates on 115/120V AC, 50/60Hz power.
• Low power consumption, rated at 4 to 5 watts.
• Designed for continuous duty and can be stalled indefinitely without damage.
• Slow rotation speed of approximately 1-2 RPM.
• Direct replacement for motors in popular bin level indicators used in concrete plants.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Fits Monitor Technologies KA series and Bindicator Roto-Bin-Dicator rotary paddle level indicators. These indicators are widely used in the silos and bins of concrete batch plants from OEMs including Stephens Mfg., Con-E-Co, and Vince Hagan.

All measurements ± standard manufacturing tolerance.
