Electric Proximity Switch
Proximity Switch · Inductive

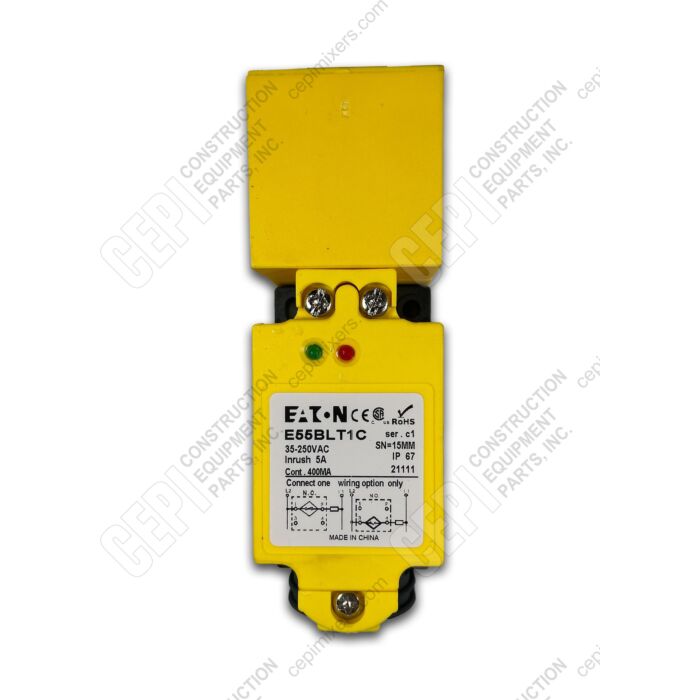

This is an Eaton rectangular, limit switch style inductive proximity sensor, part number E55BLT1C. It is designed for use in industrial automation and control systems, such as those found on concrete batch plants. These sensors are often used to confirm the open or closed position of aggregate gates, mixer doors, or other moving components, ensuring safe and proper sequencing of the batching process. Encased in a durable PBT resin housing with an IP67 rating, it is built to withstand harsh environments, including car wash applications and outdoor machinery. This 2-wire AC sensor operates on 35-250V AC and provides a configurable NO/NC output.
Technical Specifications
Manufacturer
Eaton
Series
E55
Voltage Rating
35 - 250 Volt AC
Sensing Distance
15 mm
Mounting
Shielded/Flush
Output
2-Wire AC, Selectable NO/NC
Switching Current
400 mA
Switching Frequency
25 Hz
Connection
Screw Terminal
Enclosure Material
PBT Resin
IP Rating
IP67
Operating Temperature
-13 to 158 °F (-25 to 70 °C)
Dimensions
4.64 in L x 1.57 in W x 1.57 in H
Weight
0.63 lbs
Key Features
- Inductive sensing technology with a 15mm sensing distance.
- Durable PBT resin enclosure rated to NEMA 4, 4X, 6, 12, 13 and IP67 standards for environmental resistance.
- Wide voltage range of 35-250V AC.
- Selectable Normally Open (NO) or Normally Closed (NC) output configuration.
- LED indicators for 'Power On' and 'Output On' status.
- Screw terminal connection with 1/2" NPT conduit entry.
Fits These Mixers
Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. This is a universal industrial component. In concrete batch plants, it is commonly used as a position sensor for clam gates. Its suitability depends on the specific application's mounting, wiring, and sensing requirements rather than a specific plant manufacturer.
All measurements ± standard manufacturing tolerance.
