Hydraulic Valve Cartidge - Chute Brake

Hydraulic Valve Cartidge - Chute Brake

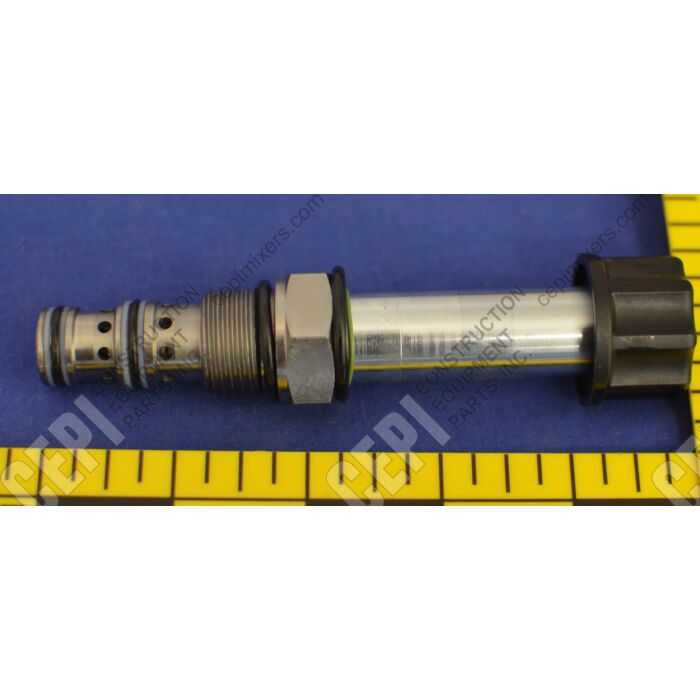

This is a Sun Hydraulics FDBA-LAN screw-in hydraulic cartridge valve. It provides precise, adjustable flow control for hydraulic circuits, such as the chute brake on a Kimble rear discharge concrete mixer. As a pressure-compensated valve, it maintains a constant flow rate regardless of pressure changes, ensuring consistent chute operation. It includes an integral high-capacity check valve for unrestricted reverse flow. This part is a critical replacement for a malfunctioning or leaking valve to restore proper and safe control over the mixer's chute.

Key Features

• Fully adjustable flow control from nearly closed to maximum flow.
• Pressure-compensated design maintains consistent flow with varying load pressures.
• Features an integral reverse-flow check valve for unrestricted flow from port 2 to port 1.
• Sharp-edged orifice design minimizes flow variations due to changes in fluid viscosity.
• Manual adjustment via a black knob allows for easy setting at high pressures.

Fits These Mixers

McNeilus, Con-Tech, CBMW, Kimble. Fits hydraulic blocks using the Sun Hydraulics T-13A cavity. It is commonly used in the hydraulic chute control block for Kimble rear discharge concrete mixers.

All measurements ± standard manufacturing tolerance.
