O"" Ring - Buna
Hydraulic Seal · Buna O-Ring

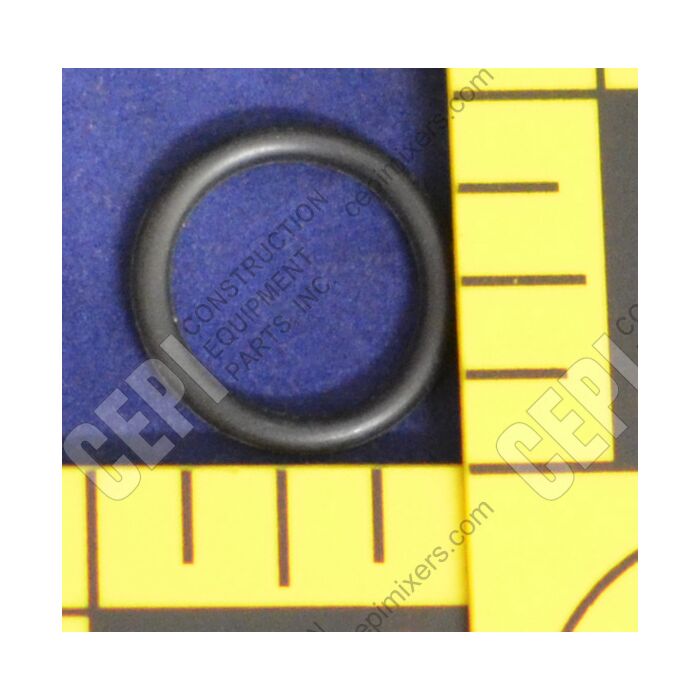

This is a standard AS568-115 O-ring, a crucial sealing component for various systems on concrete mixers. Made from durable Buna-N (Nitrile) 70 durometer rubber, it offers excellent resistance to petroleum-based hydraulic fluids, oils, gasoline, and water, making it ideal for sealing connections in hydraulic lines, pumps, valves, and cylinders. This O-ring would be used to replace a worn or damaged seal during maintenance to prevent leaks and ensure the proper functioning of the equipment. Its specific dimensions are an inner diameter of 0.674 inches, an outer diameter of 0.880 inches, and a cross-section of 0.103 inches.
Technical Specifications
Material
Buna-N (Nitrile, NBR)
Hardness
70 Durometer (Shore A)
Standard Size
AS568-115
Inner Diameter (ID)
0.674 in (17.12 mm)
Outer Diameter (OD)
0.880 in (22.36 mm)
Cross Section (CS)
0.103 in (2.62 mm)
Nominal ID
11/16 in
Nominal OD
7/8 in
Nominal Cross Section
3/32 in
Key Features
- Made from Buna-N (Nitrile) rubber for excellent resistance to petroleum-based oils and hydraulic fluids.
- Standard AS568-115 size for broad compatibility in various sealing applications.
- 70A durometer hardness provides a good balance of flexibility and resistance to indentation.
- Suitable for both static and dynamic sealing applications in hydraulic and pneumatic systems.
- Effective temperature range from -40°F to +250°F.
Fits These Mixers
McNeilus, Terex, Con-Tech. This is a general-purpose O-ring that fits various applications across multiple OEM brands, including McNeilus, Terex, and Con-Tech, particularly within their hydraulic systems (pumps, valves, cylinders) that require an AS568-115 size seal. Due to its standardized nature, it is not specific to one model but is used wherever a seal with these dimensions and material properties is specified.
All measurements ± standard manufacturing tolerance.
