Plant Air Cylinder Clevis Pin

Plant Air Cylinder Clevis Pin

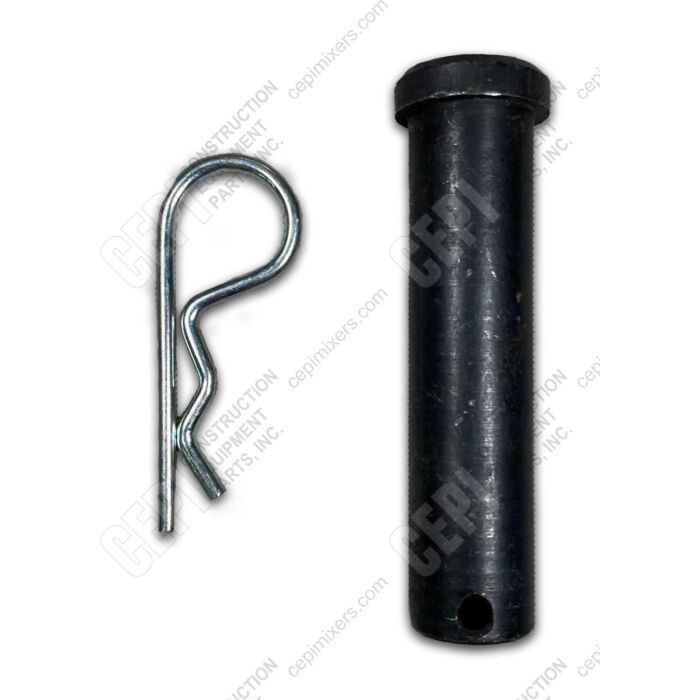

This is a replacement clevis pin for air cylinders found on concrete batch plant equipment. It serves as the critical connection point between the pneumatic air cylinder and the component it actuates, such as an aggregate gate or a butterfly valve. As a common wear item subject to constant movement and stress, this pin requires periodic inspection and replacement to prevent equipment failure and ensure reliable plant operation. This specific pin measures 1 inch in diameter and 3 inches in length and typically includes a cotter pin for secure installation.

Key Features

• Diameter: 1 inch
• Length: 3 inches
• Material: Steel.
• Finish: Zinc.
• Includes hole for cotter pin to secure connection.
• Connects air cylinders to gates and valves on batch plants.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Fits air cylinders on concrete batch plants from major OEMs including Vince Hagan, which specifies a 1" pin for some of its air cylinders. Also a common size for various agricultural and industrial equipment.

All measurements ± standard manufacturing tolerance.

Product descriptions are drafted with automated tools and reviewed as time allows. While we work to keep them accurate, specifications and fitment should be confirmed with a Customer Service specialist at 800-745-3414 before purchase. Found an error? Let us know and we’ll fix it.
