Kimble Hydraulic Cylinder Pin And Bushing

Kimble Hydraulic Cylinder Pin And Bushing

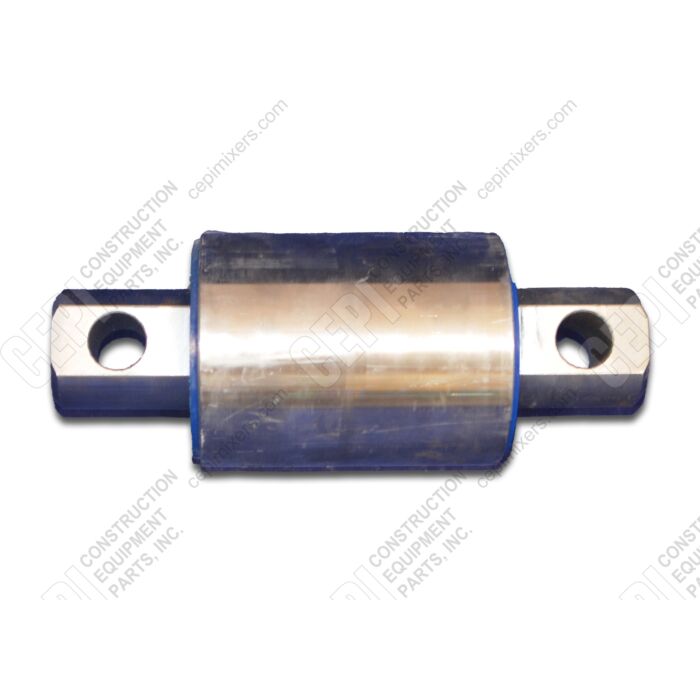

This is a replacement pivot pin and bushing assembly designed specifically for Kimble concrete mixer trucks. The assembly serves as a critical connection point, likely for a hydraulic lift axle cylinder, allowing for smooth pivoting motion. It is essential for maintaining the proper function and alignment of the axle assembly. This part is needed when the original pin or bushing becomes worn or damaged, which can lead to excessive play or failure of the hydraulic system. The robust steel construction ensures durability in the demanding environment of a ready-mix truck.

Key Features

• Overall length of 11.0 inches.
• Features two mounting holes with a 1-1/16" inside diameter.
• Measures 8-1/2 inches from center to center of the mounting holes.
• Bushing has a 4-3/8 inch outside diameter.
• Designed as a direct replacement for Kimble mixer components.

Fits These Mixers

McNeilus, Con-Tech, CBMW, Kimble. Fits Kimble rear discharge mixers, specifically for a pivot mount in the axle and trailer assembly, likely for a hydraulic lift axle cylinder.

All measurements ± standard manufacturing tolerance.
