Fastener Elevator Bolt 1/4-20X1 Elevator

Fastener Elevator Bolt 1/4-20X1 Elevator

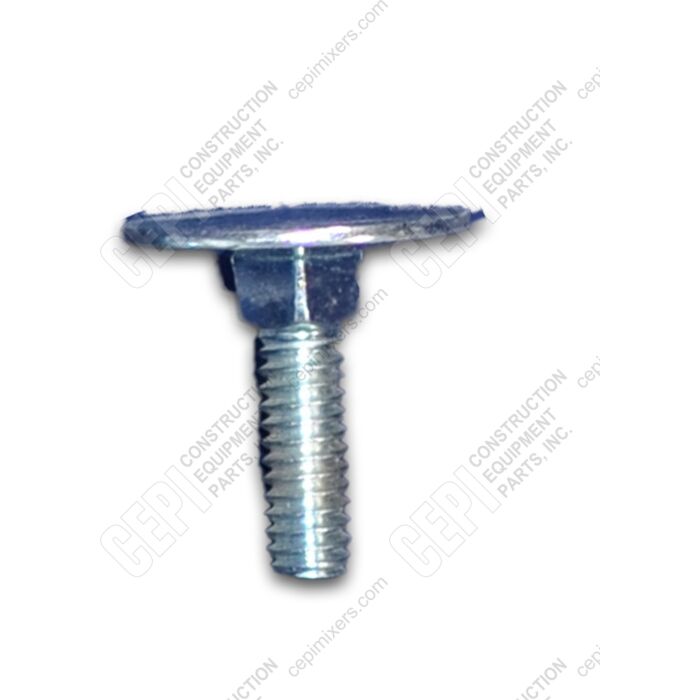

This 1/4-20 x 1" elevator bolt is a general-purpose fastener used across various concrete mixer applications. It features a large, flat head that provides a wide bearing surface against softer materials and a square neck that prevents the bolt from turning when a nut is tightened. These bolts are essential for maintenance and repair, commonly used to secure components in conveyor systems, drum fins, or liners where a smooth, snag-free surface is required to ensure efficient material flow. This particular bolt is made from Grade 2 steel and is often zinc-plated for corrosion resistance in wet environments.

Key Features

• 1/4"-20 coarse thread (USS)
• 1 inch in length
• Large, low-profile flat head for a flush surface
• Square neck design prevents rotation during tightening
• Grade 2 steel construction for light-duty applications
• Typically zinc-plated for corrosion resistance

Fits These Mixers

McNeilus, Terex, Con-Tech. This is a general-purpose fastener commonly used on various concrete mixers and batch plant equipment, particularly for securing components on conveyor systems, material guides, and inside drums. While no specific part number for this length was found, a similar 1/4-20 x 2" elevator bolt is listed in McNeilus parts catalogs.

All measurements ± standard manufacturing tolerance.
