Chute Brake Chamber Assembly W/ QE Valve

Chute Brake Chamber Assembly W/ QE Valve

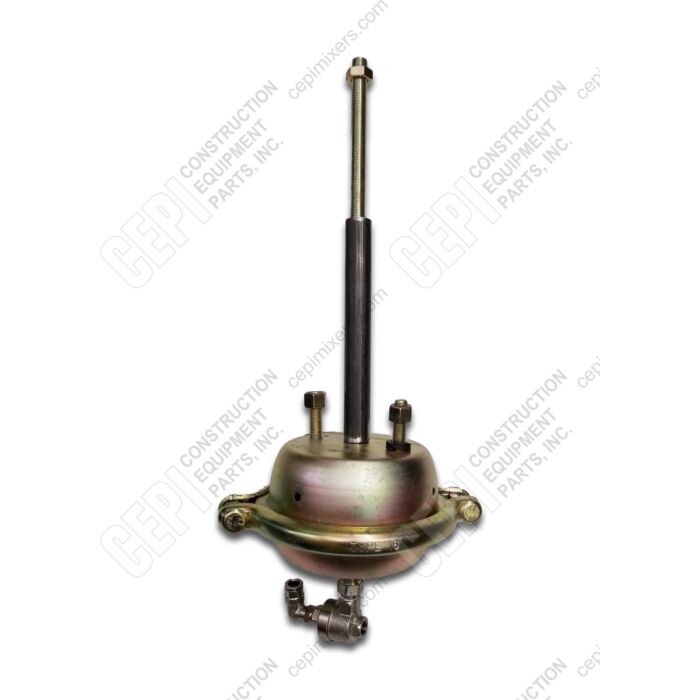

This is a complete chute brake chamber assembly for the pneumatic chute lock system on rear discharge concrete mixers. The air brake chamber converts compressed air into mechanical force to securely lock the chute in place, preventing movement during transit or operation. It includes a pre-installed or accompanying quick exhaust (QE) valve, which allows air to be vented directly at the chamber for a much faster release of the lock. This assembly is a critical replacement part for maintaining safe and efficient operation of the mixer's chute system.

Key Features

• Pneumatic brake chamber provides positive locking force for the chute.
• Includes a quick exhaust (QE) valve for rapid disengagement of the chute lock.
• Designed for use in mixer truck air systems.
• Replaces worn or leaking components of the chute lock mechanism.

Fits These Mixers

McNeilus, Con-Tech, CBMW, Kimble. Fits the pneumatic chute lock systems on various rear discharge mixers, including models from McNeilus (MTM) and Con-Tech (CTM).

All measurements ± standard manufacturing tolerance.
