5A Series Switchbox

5A Series Switchbox

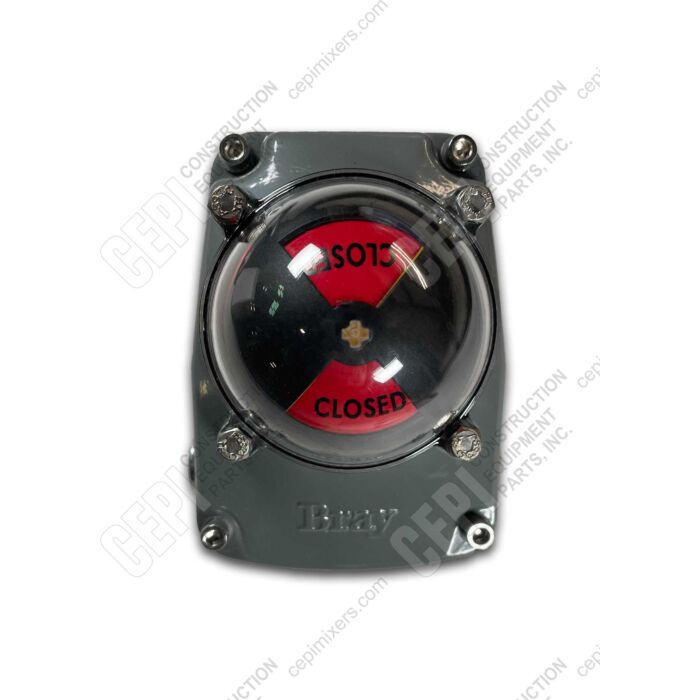

The Bray Series 5A is a compact, lightweight valve status monitor that mounts on top of a pneumatic or electric actuator. In a concrete batch plant, it is used on quarter-turn butterfly or ball valves for water, cement, and aeration systems to confirm the valve's position. It features a high-visibility domed indicator for local confirmation and internal switches to send an electrical signal to a control system. This part is essential for process automation, preventing material handling errors, and is a direct replacement for a damaged or malfunctioning unit. The die-cast aluminum housing is powder-coated for corrosion and impact resistance.

Key Features

• Compact, low-profile die-cast aluminum housing.
• Weatherproof NEMA 4, 4X and IP66/67 rated enclosure.
• High-impact polycarbonate dome for clear visual position indication.
• Captive stainless steel cover bolts located outside the sealing area.
• Tool-free, splined cam design for easy adjustment of switch activation points.
• Mounts to any VDI/VDE 3845 (NAMUR) compliant quarter-turn actuator.
• Secondary O-ring seal to protect internals if the main dome is compromised.

Fits These Mixers

Vince Hagan, CMW, Con-E-Co, Erie Strayer, Stephens, Donaldson Torit. Universally fits most quarter-turn pneumatic and electric actuators with a VDI/VDE 3845 (NAMUR) standard mounting interface. Commonly used on valve assemblies in concrete batch plants from OEMs like Con-E-Co, Vince Hagan, CMW, and Stephens for controlling water, cement, and aeration systems.

All measurements ± standard manufacturing tolerance.

Product descriptions are drafted with automated tools and reviewed as time allows. While we work to keep them accurate, specifications and fitment should be confirmed with a Customer Service specialist at 800-745-3414 before purchase. Found an error? Let us know and we’ll fix it.
