Hydraulic Cylinder Foldback Assembly

Hydraulic Cylinder Foldback Assembly

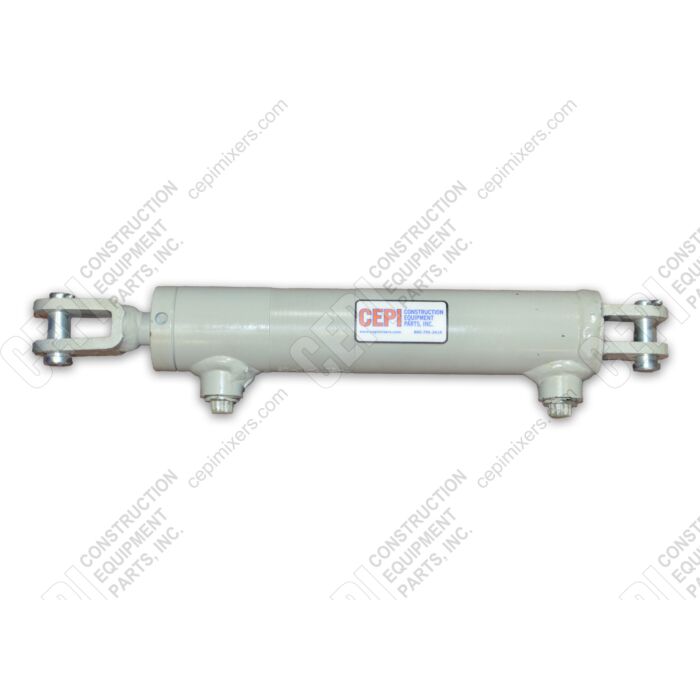

This is a hydraulic cylinder for the chute fold assembly, specifically designed for Terex Advance and Oshkosh front discharge concrete mixers. It is a critical component for hydraulically operating the power chute, allowing the operator to fold and unfold the chute sections from the cab. This cylinder is a direct replacement for worn or damaged original equipment, ensuring reliable and efficient operation of the concrete placement system. Proper function of this cylinder is essential for positioning the chute accurately and safely during a pour.

Key Features

• Direct replacement for Terex and Oshkosh front discharge mixer chute fold systems.
• Features a 1.5-inch bore and a 6-inch stroke.
• Designed with 1/4" NPTF ports for hydraulic line connection.
• Measures 13 inches from pin center to pin center when closed.
• Utilizes 1/2" x 1.5" clevis pins for mounting.
• Rated for operating pressures up to 3000 PSI.

Fits These Mixers

Terex, Terex Advance, Oshkosh. Fits Terex Advance and Oshkosh front discharge concrete mixers equipped with hydraulic power chute fold assemblies. It is a direct cross-reference for Terex part number 16099 and Oshkosh part number 3329891.

All measurements ± standard manufacturing tolerance.

Product descriptions are drafted with automated tools and reviewed as time allows. While we work to keep them accurate, specifications and fitment should be confirmed with a Customer Service specialist at 800-745-3414 before purchase. Found an error? Let us know and we’ll fix it.
