Advance Drum Magnetic Reed Switch

Advance Drum Magnetic Reed Switch

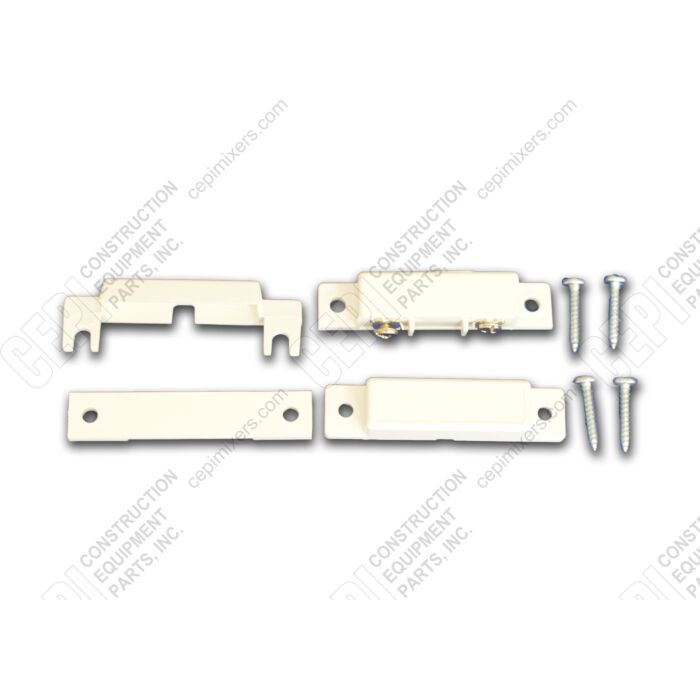

This product is a magnetic reed switch, also known as a drum counter switch, designed for the electrical systems of front discharge concrete mixers. It is installed on the mixer frame and is activated by a magnet (sold separately, part number 16616) mounted on the rotating drum. Each time the magnet passes the switch, it sends a signal to a counter in the cab, allowing for the precise tracking of drum revolutions. This data is essential for monitoring mixer usage, scheduling preventative maintenance, and ensuring accurate batch counts. Replacing a faulty drum counter switch is critical for maintaining accurate operational data.

Key Features

• Functions as a non-contact sensor for counting drum revolutions.
• Provides essential data for maintenance schedules and usage tracking.
• Direct cross-reference for Terex Advance part number 16936.
• Used in conjunction with a drum-mounted magnet.

Fits These Mixers

Terex, Terex Advance, Oshkosh. Fits Terex Advance and older Oshkosh front discharge concrete mixers. It is the sensor component of the drum counter system.
