Fitting Elbow-1" 90

Fitting Elbow-1" 90

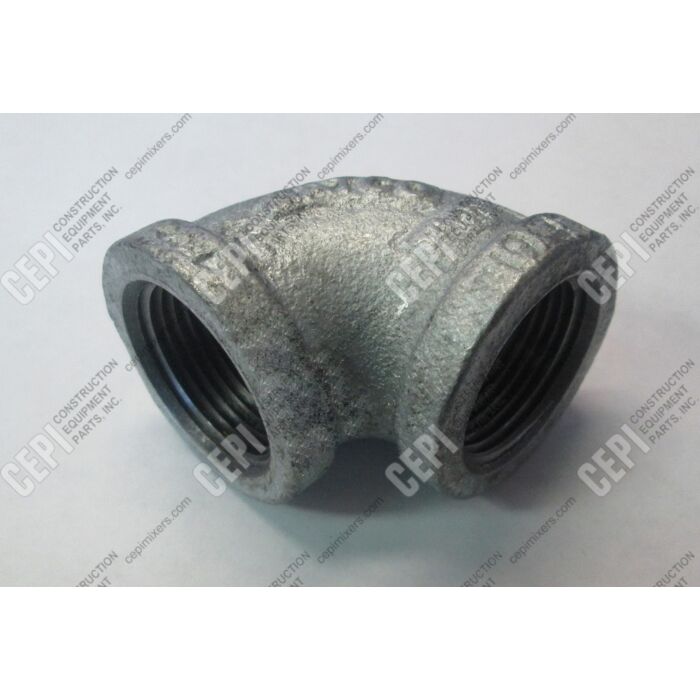

This is a standard 1-inch, 90-degree elbow fitting, commonly used in the water and air systems of concrete mixer trucks. Made from hot-dipped galvanized malleable iron, it offers excellent resistance to rust and corrosion from water and air exposure. This fitting allows for a change in piping direction and is essential for routing water lines for washout systems, dust suppression, or pneumatic control lines on various equipment. Its female NPT threaded connections on both ends ensure a tight, leak-resistant seal when installed with appropriate sealant.

Key Features

• Changes piping direction by 90 degrees
• Hot-dipped galvanized coating for corrosion resistance.
• Durable malleable iron construction conforming to ASTM A197.
• Female NPT threads on both ends for standard 1-inch pipe.
• Class 150 pressure rating.
• Threads conform to ASME B1.20.1 standards.

Fits These Mixers

McNeilus, Terex, Con-Tech. This is a general-purpose fitting used across multiple concrete mixer brands, including McNeilus, Con-Tech, and Terex, for low-pressure water, air, and some hydraulic return lines. Its suitability depends on matching the 1-inch NPT thread size and system pressure requirements.

All measurements ± standard manufacturing tolerance.
