Fitting Elbow- Male 3/8 Air Brake, 1/4 Male Pipe

Fitting Elbow- Male 3/8 Air Brake, 1/4 Male Pipe

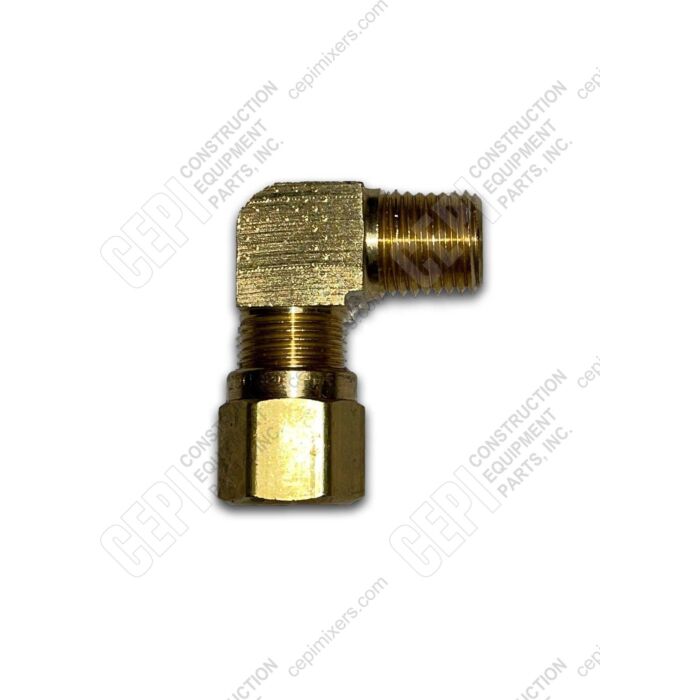

This is a brass 90-degree male elbow fitting used for creating a right-angle connection in pneumatic systems, specifically for air brakes on heavy equipment like concrete mixers. It features a compression-style connection for 3/8" OD tubing on one end and a 1/4" male National Pipe Thread (NPT) on the other. This component is essential for routing air lines in tight spaces within a vehicle's air brake system, ensuring a secure, leak-free connection for safety and operational reliability. Many such fittings are required to meet Department of Transportation (DOT) standards for use in air brake applications.

Key Features

• 90-degree elbow for routing tubes at a right angle.
• Connects 3/8" OD tubing to a 1/4" NPT male port.
• Brass construction for corrosion resistance and durability.
• Compression fitting provides a secure, leak-free seal on tubing.
• Commonly used for D.O.T. compliant air brake systems on heavy trucks and equipment.

Fits These Mixers

McNeilus, Terex, Con-Tech. This is a general-purpose fitting for air brake systems on various heavy-duty trucks, including McNeilus, Terex, and Con-Tech concrete mixers. Compatibility depends on the specific air line and port size of the application.

All measurements ± standard manufacturing tolerance.
