McNeilus Chute Lock Air Chamber

McNeilus Chute Lock Air Chamber

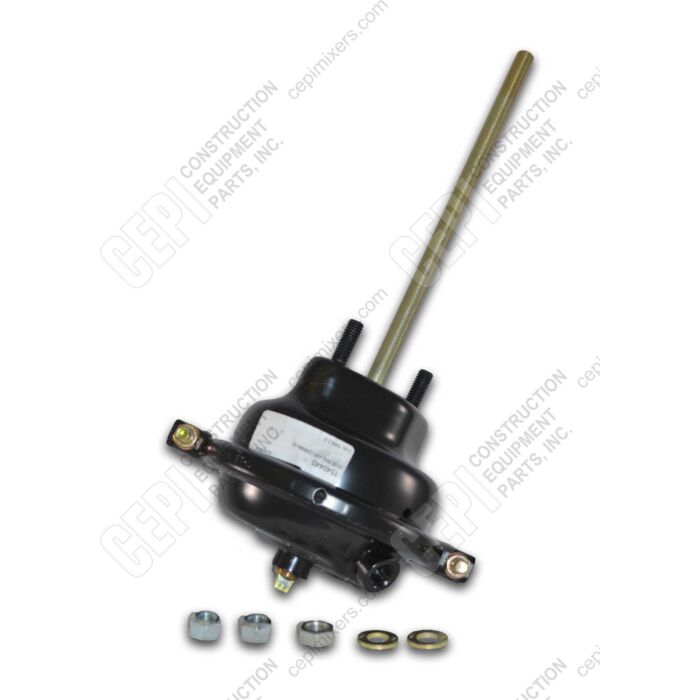

This is a Type 16 service air brake chamber used as a chute lock on McNeilus rear discharge concrete mixers. It converts compressed air into mechanical force to securely lock the discharge chute, preventing movement during transit and ensuring operator safety. This part is a critical replacement for worn or damaged air chambers, which can lead to chute drift and potential safety hazards. A notable feature of this specific application is that the push rod is often cut to a length of 2.5 inches from the chamber body for proper fitment.

Key Features

• Type 16 service air brake chamber
• Functions as a chute lock mechanism
• Push rod is cut to 2.5 inches from the chamber for this application
• Standard stroke of 2.25 inches
• 3/8" NPT air port
• Fully threaded push rod for adjustability

Fits These Mixers

McNeilus, Con-Tech, CBMW, Kimble. Fits various McNeilus rear discharge mixers. It is a direct cross-reference for Con-Tech and Beck Industrial chute lock air chambers.

All measurements ± standard manufacturing tolerance.
