McNeilus Chute Lock Clevis Assembly

McNeilus Chute Lock Clevis Assembly

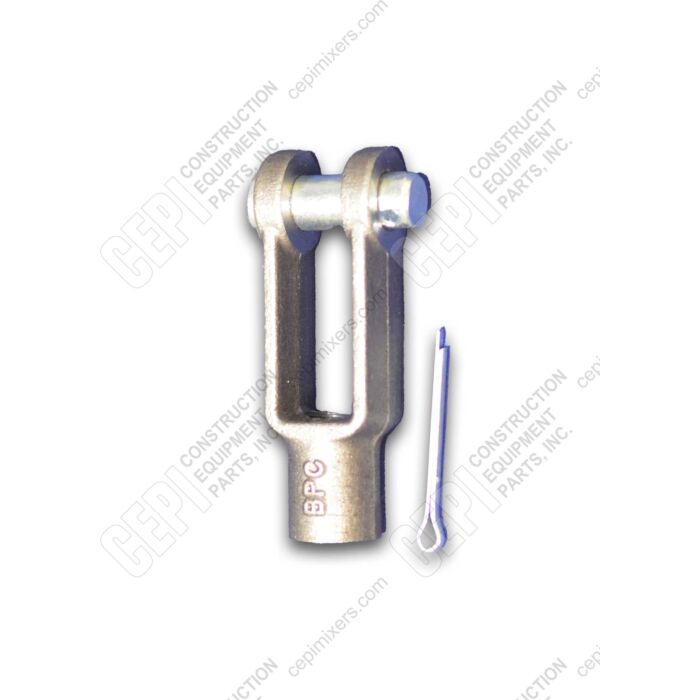

The McNeilus Chute Lock Clevis Assembly is a critical linkage component for the pneumatic chute locking system on rear discharge mixer trucks. It threads onto the rod of the air brake chamber (typically a Type 16 canister) and uses a steel pin to attach to the chute lock clamp cam, allowing the air cylinder to securely lock the concrete chute in place during transit. This complete assembly includes the 1/2-inch fine thread (1/2"-20) clevis yoke, clevis pin, and retaining cotter pin. Replacing a worn clevis prevents excessive play in the chute lock mechanism, ensuring safe and reliable operation.

Key Features

• Complete assembly includes clevis yoke, clevis pin, and retaining keeper/cotter pin
• 1/2-inch SAE (1/2"-20) fine thread for direct fitment to standard Type 16 air brake chambers
• Heavy-duty steel construction withstands high-cycle pneumatic actuation
• Direct replacement for McNeilus and Con-Tech pneumatic chute lock systems

Fits These Mixers

McNeilus, Con-Tech, CBMW, Kimble. Fits McNeilus (MTM) and Con-Tech (CTM) rear discharge mixers equipped with pneumatic chute locks. Threads directly onto Type 16 air brake chambers (McNeilus part 0183122 / Con-Tech part 785001) used in the chute pivot assembly.

All measurements ± standard manufacturing tolerance.
