McNeilus Air Cylinder Clevis Cotter Pin

McNeilus Air Cylinder Clevis Cotter Pin

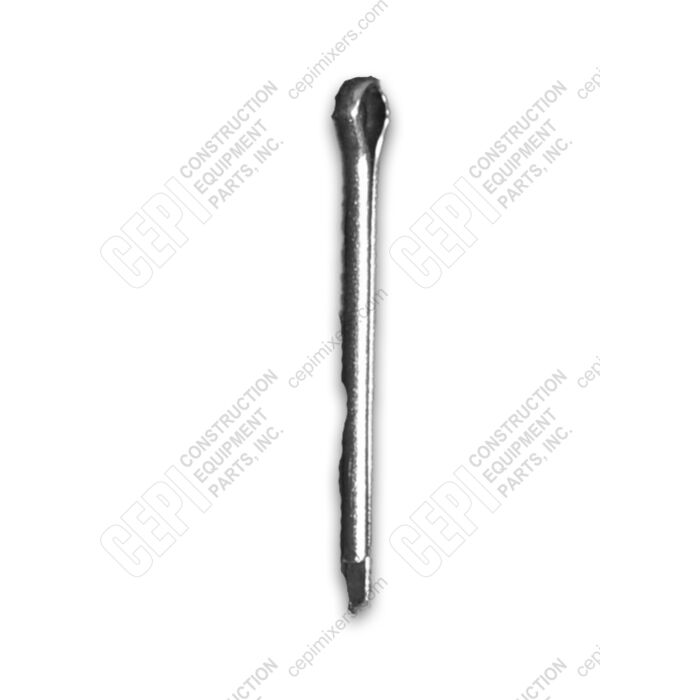

This is a 1/8" x 1 1/2" cotter pin, specifically used for securing the clevis pin on air cylinders for McNeilus and other rear discharge concrete mixers. The cotter pin is inserted through a hole in the clevis pin to prevent it from loosening or falling out due to vibration, ensuring the safe and proper function of components like the chute lift assembly. Made from zinc-plated low carbon steel, it offers corrosion resistance suitable for the demanding environment of concrete work. This is an essential and common replacement part for routine maintenance or repair of air-actuated systems.

Key Features

• Secures clevis pins on air cylinder linkages.
• Dimensions: 1/8" diameter by 1 1/2" length.
• Zinc-plated low carbon steel construction for corrosion resistance.
• Extended prong design for easier installation.
• Compliant with ASME B18.8.1 standards.

Fits These Mixers

McNeilus, Con-Tech, CBMW, Kimble. This is a universal hardware part, but in the context of the specified equipment, it is used to secure the clevis pin on air cylinders for chute and hopper assemblies on McNeilus (MTM) and Con-Tech (CTM) rear discharge mixers.

All measurements ± standard manufacturing tolerance.
