McNeilus Axle Center Arm Pivot Pin

McNeilus Axle Center Arm Pivot Pin

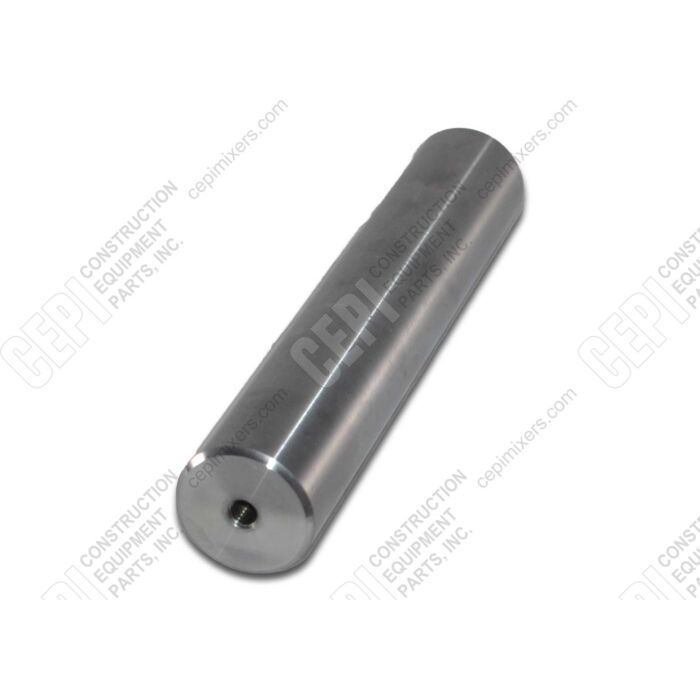

This axle center arm pivot pin is a critical structural component for rear discharge concrete mixers, specifically designed for the axle cylinder crossmember assembly. Measuring 7.5 inches in overall length and 1.5 inches in diameter, it serves as the base end pin for the bridge cylinder, allowing smooth articulation of the booster axle. Replacing worn pivot pins is essential to maintain proper alignment and safe operation of the trailer axle system. It is an exact replacement for McNeilus Bridgemaster V (BMV) and Con-Tech BM5 mixer configurations.

Key Features

• Acts as the base end pivot point for the axle control arm and bridge cylinder
• Direct replacement for McNeilus Bridgemaster V (BMV) and Con-Tech BM5 systems
• Heavy-duty steel construction designed to withstand high-stress booster axle articulation
• Measures 7-5/16 inches in usable length (7.5 inches overall) by 1.5 inches in diameter

Fits These Mixers

McNeilus, Con-Tech, CBMW, Kimble. Fits McNeilus Bridgemaster V (BMV) rear discharge mixers (axle cylinder crossmember assembly) and Con-Tech BM5 bridge cylinders (truck side/trailer side).

All measurements ± standard manufacturing tolerance.
