McNeilus Hydraulic Chute Solenoid - Up - Normally Open

McNeilus Hydraulic Chute Solenoid - Up - Normally Open

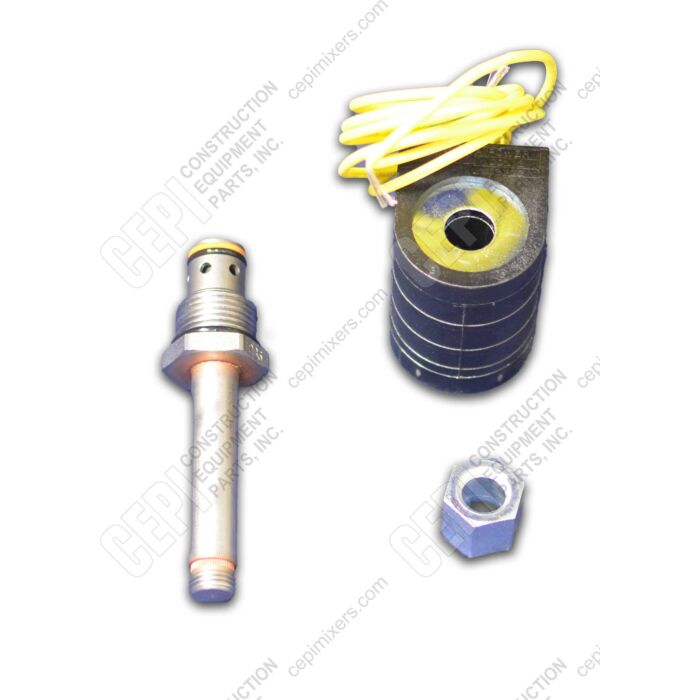

This 12V normally open hydraulic solenoid valve assembly is used in the chute control manifold block of McNeilus rear discharge mixers. In an open-center single-acting hydraulic system, energizing this valve closes the circuit, directing hydraulic fluid to the chute lift cylinder to raise the discharge chute. The assembly features a Parker DSL101N series direct-acting poppet cartridge and a 12V DC coil, offering low leakage and fast response for precise chute positioning. It is designed to fit a standard C-10-2 cavity.

Key Features

• Normally open (NO) 2-way, 2-position poppet style cartridge design
• Includes Parker DSL101N cartridge and 12V DC coil
• Fits standard size 10 (C-10-2) cavity with 7/8"-14 UNF-2A threads
• Low-leakage hardened steel operating parts with zinc-plated exterior
• Rated for up to 15 GPM flow and 3600 PSI maximum operating pressure

Fits These Mixers

McNeilus, Con-Tech, CBMW, Kimble. Fits McNeilus rear discharge mixers equipped with single-acting open-center hydraulic chute control blocks (e.g., manifold 0106590). Also compatible with select Continental and Kimble mixer hydraulic systems.

All measurements ± standard manufacturing tolerance.
