ZF Seal

ZF Seal

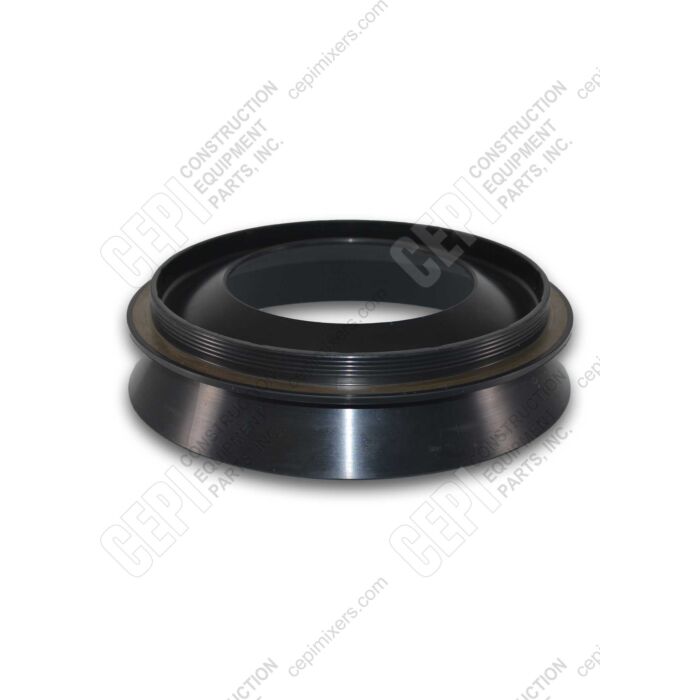

This ZF main output seal, also known as a sealing collar, is a critical replacement component for concrete mixer gearboxes. It prevents gear oil from leaking out of the main output shaft while keeping concrete dust, moisture, and debris from entering the gearbox housing. Designed to fit ZF P-Series gearboxes including the P-4300, P-5300, P-7300, and PLM 9 models, this seal ensures proper lubrication retention and extends the operational life of the mixer drive system. It features a 125mm inner diameter, 180mm outer diameter, and is constructed from durable NBR (Nitrile Rubber).

Key Features

• Exact OEM replacement for ZF mixer gearbox main output shafts
• Prevents gear oil leakage and protects internal bearings from concrete dust
• Dimensions: 125mm ID x 180mm OD x 12/15mm Width
• Compatible with ZF P-4300, P-5300, P-7300, and PLM 9 series gearboxes
• Constructed from durable NBR (Nitrile Rubber) for high wear resistance

Fits These Mixers

ZF, Rex, PMP, Challenge, Bonfiglioli. Fits ZF concrete mixer gearboxes including models P-4300, P-5300, P-7300, PLM 9, ECOMAT, and CML 16. Used as the main output shaft seal / sealing collar.

All measurements ± standard manufacturing tolerance.
